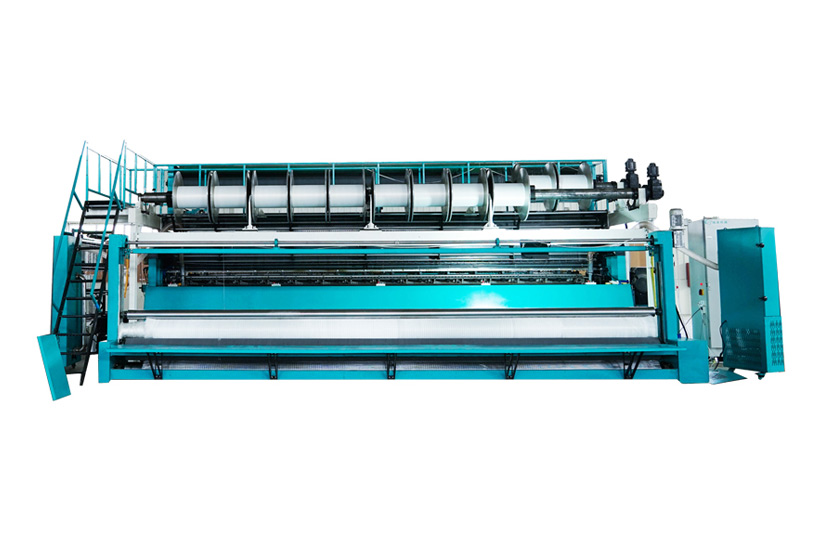

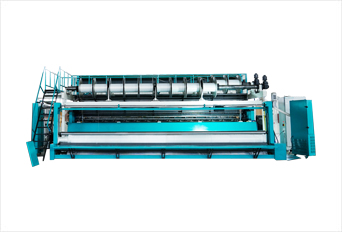

RSM3/1 186/215/247 Inch E24
Application: This machine is mainly used to produce warp-knitted interlining fabric.
| RSM3/1 (186"/215"/247") E24 Interlining Warp Knitting Machine | |
| Gauge | E24 |
| Working Width | 186", 215", 247" |
| Bar Number | 2 ground bars, 1 warp insertion bar |
| Speed | 20-1200rpm (Depends On Pattern And Material) |
| Shogging Manner | Pattern Disc |
| Let-off Manner | EBA System |
| Take-up System | EWA System |
| Needle Type | Compound Needle |
| Main power | 7.5KW (186"), 11 KW (215",247") |

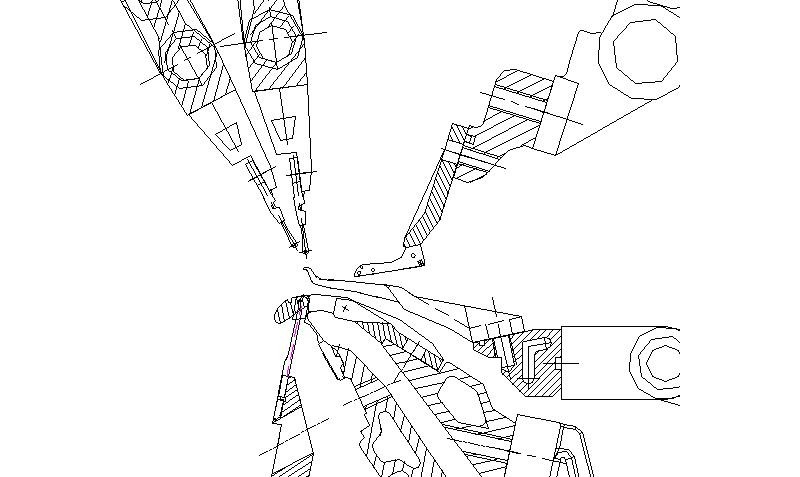

Bar arrangement:

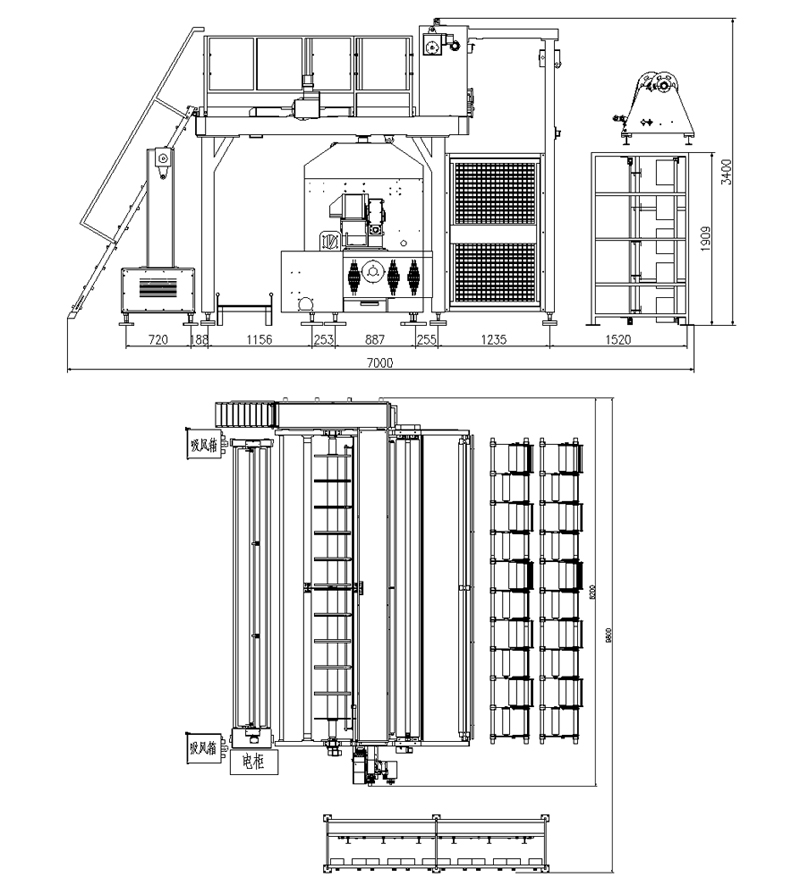

Machine size:
