RD5/6 EL(75") (90") (110") (138") (190") (210") E22/E24 Double Needle Bar Warp Knitting
Machine Without Jacquard

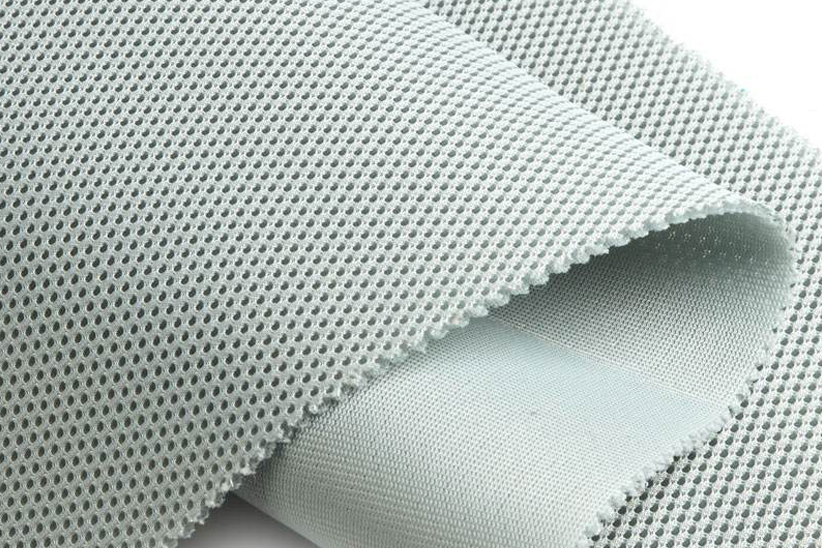

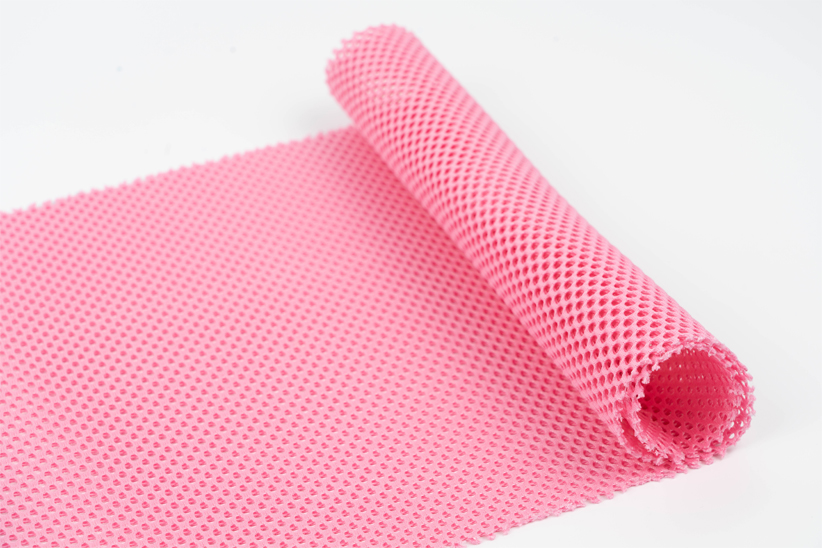

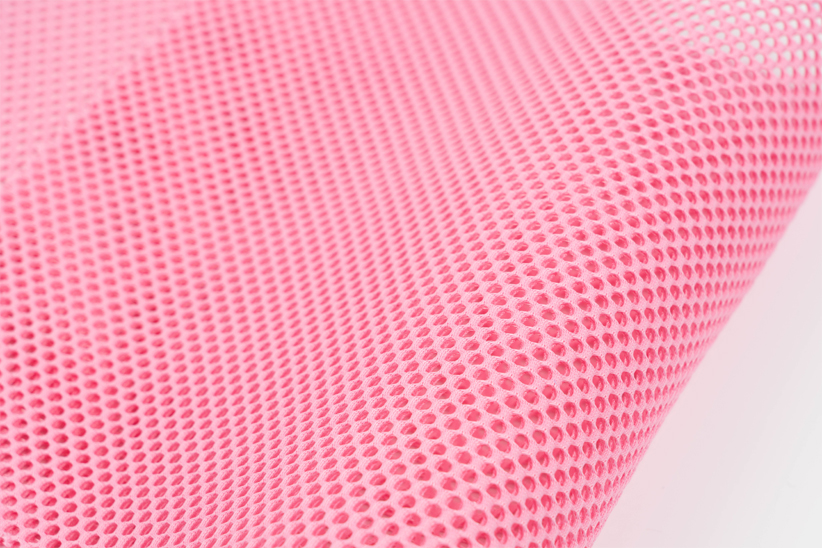

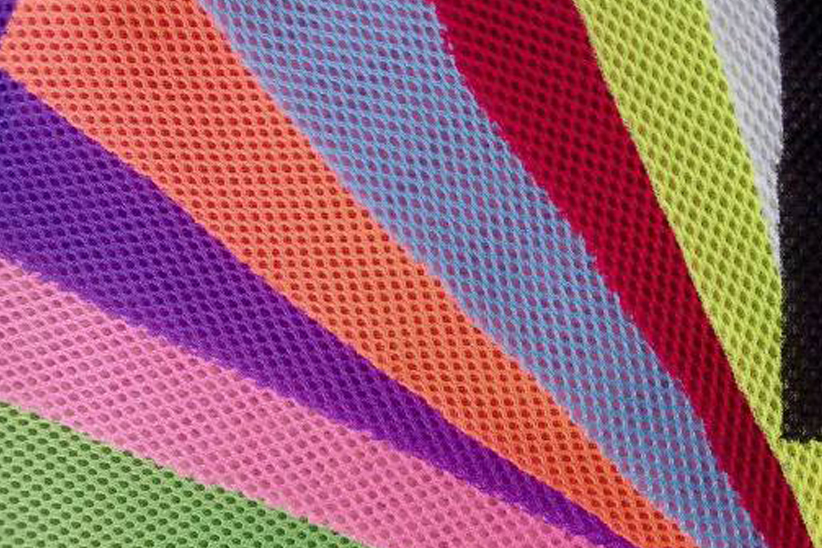

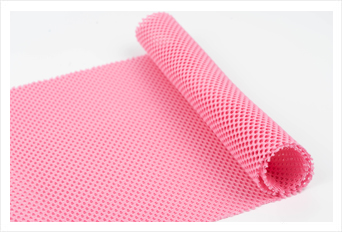

Application: shoes, intimate apparel and lingerie
RD7/8EL(75") (90") (110") (138") (190") (210") E22/E24 Double Needle Bar Warp Knitting
Machine Without Jacquard
Application: shoes, intimate apparel and lingerie
| RD5/6 EL(75") (90") (110") (138") (190") (210") E22/E24 Double Needle Bar Warp Knitting Machine Without Jacquard | RD7/8EL (75") (90") (110") (138") (190") (210") E22/E24 Double Needle Bar Warp Knitting Machine Without Jacquard | |
| Guage | E20, E22, E24, E28 | E20, E22, E24, E28 |
| Working Width | 90", 110", 138", 190", 210" | 90", 110", 138", 190", 210" |
| Bars Number | 5/6*GB | 5/6*GB |
| Machine Speed | 20-850r/min | 20-850r/min |
| Knock over distance | 1-12MM | 1-12MM |
| Let off | 5/6*EBC | 7/8*EBC |
| Shogging manner | EL or Pattern disc | EL or Pattern disc |
| Drawing off | Electronic | Electronic |
| Batching | Electronic | Electronic |
| Beams size | 21"/φ30" | 21"/φ30" |
| Main motor power | 4kW (90", 110"), 7.5kW (138"), 11kW (190", 210") | 4kW (90", 110"), 7.5kW (138"), 11kW (190", 210") |

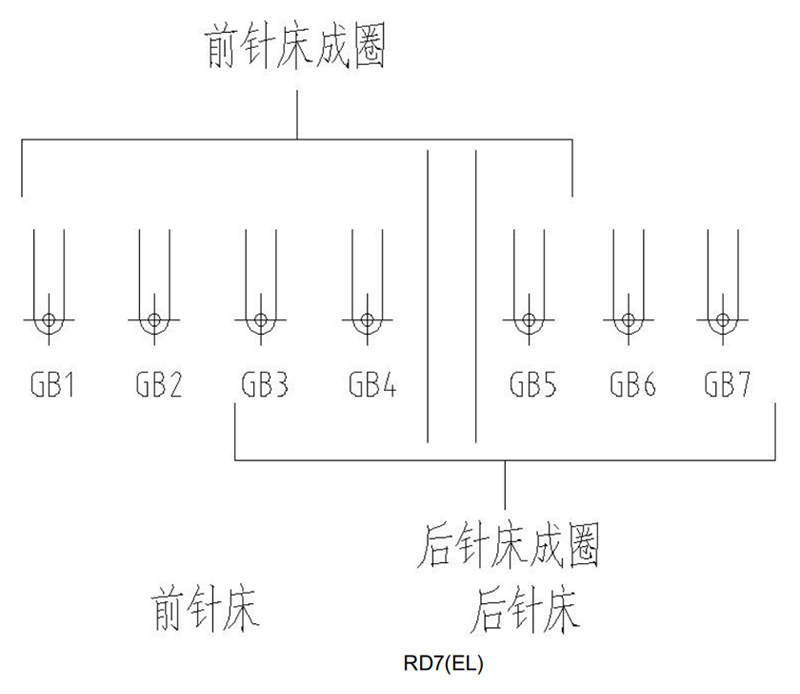

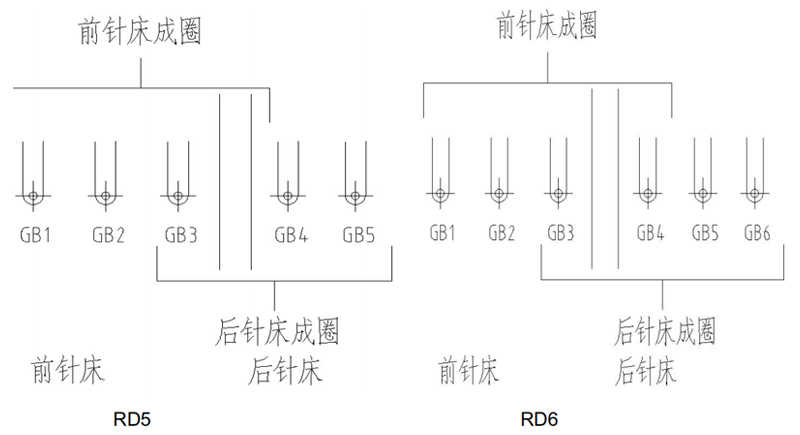

Bar arrangement:

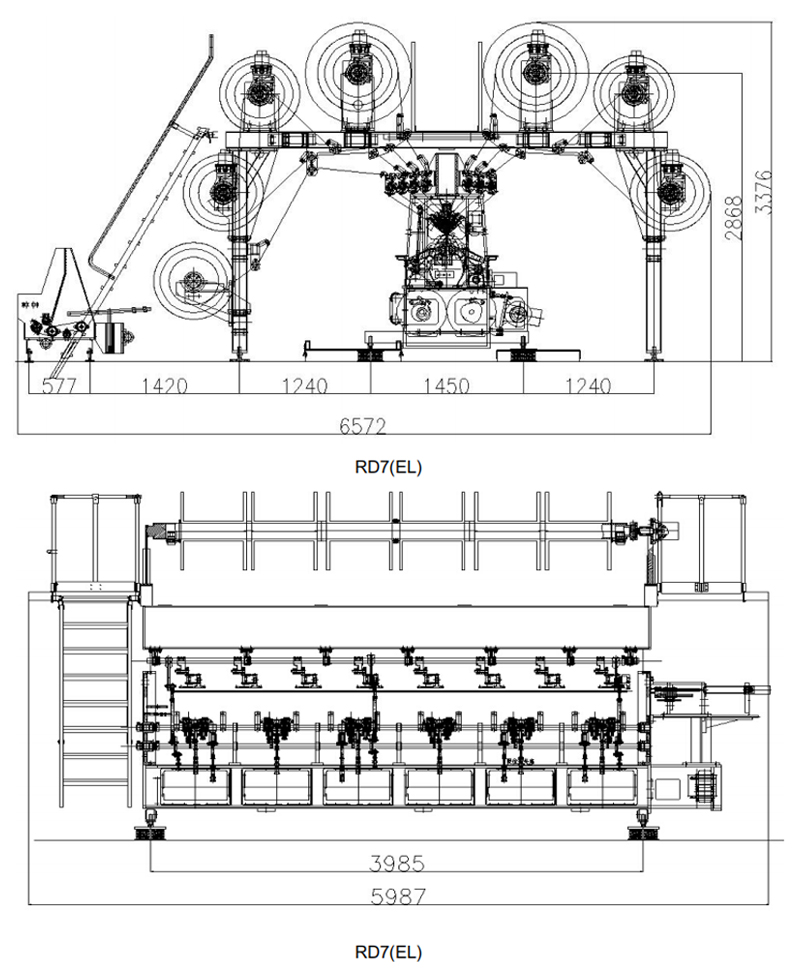

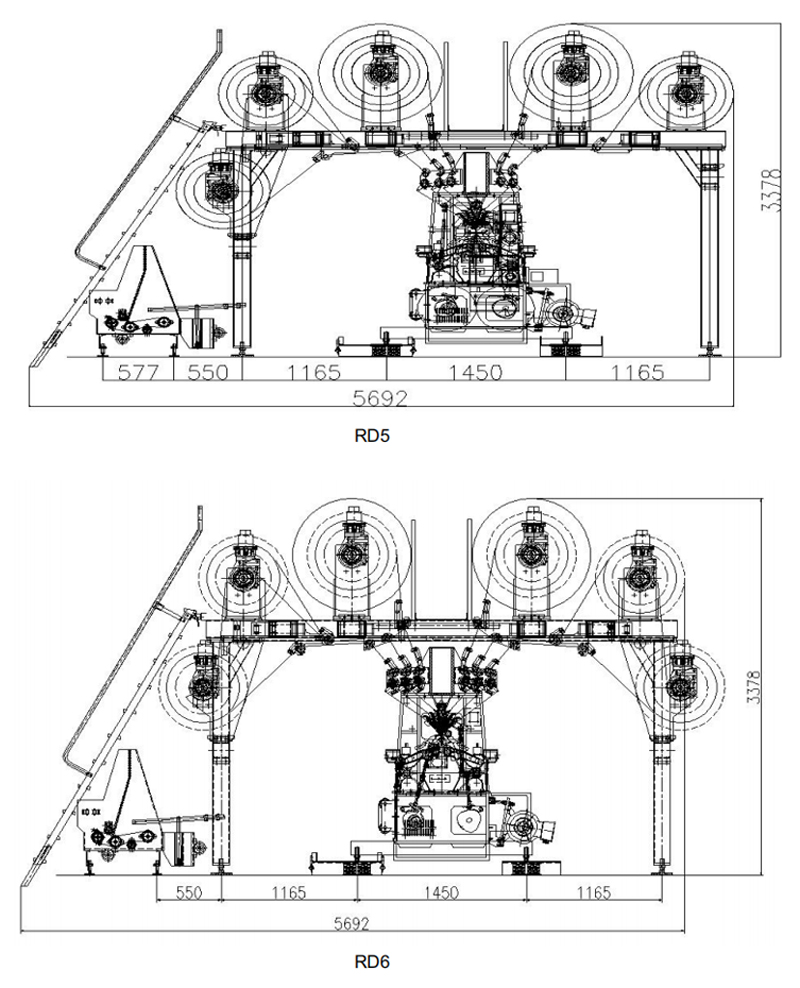

Machine size:
