BS1-V E12/14/18/20/22 2800mm
Application: Various type of stitch bonding fabric

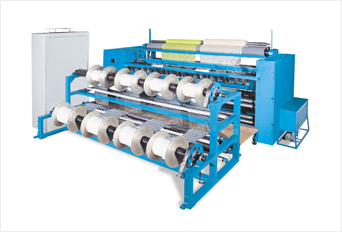

| BS1-V E12/14/18/20/22 2800mm Non-Woven Interlining Stitch Bonding Machine | |
| Gauge(Needles/25mm) | E12, E14, E18, E20, E22 |
| Working Width(mm)(choice) | 280,036,004,400 |
| Bar Number | 1 Bar |
| Speed | 50~1500rpm |
| Yarn Let-off Mechanism | Negative Let-off System, Positive Let-off System |
| Take-up Manner | Electronic Take-up |
| Stich Length Variable | 0.5~5.5mm |
| Needle Type | Compound Needle |
| Warp Beam | Φ30"x21" |
| Machine Drive | Controlled By Servomotor |
| Machine Controlled | 7 Inches Touch Screen |
| Power | 7.5KW (2800, 3600), 11KW (4400) |

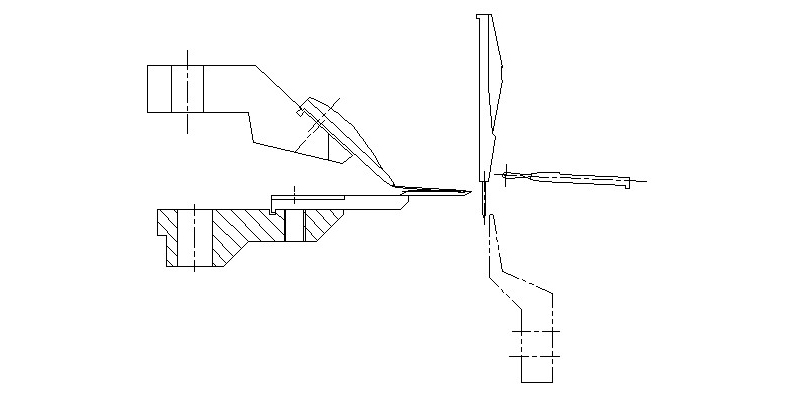

Bar arrangement:

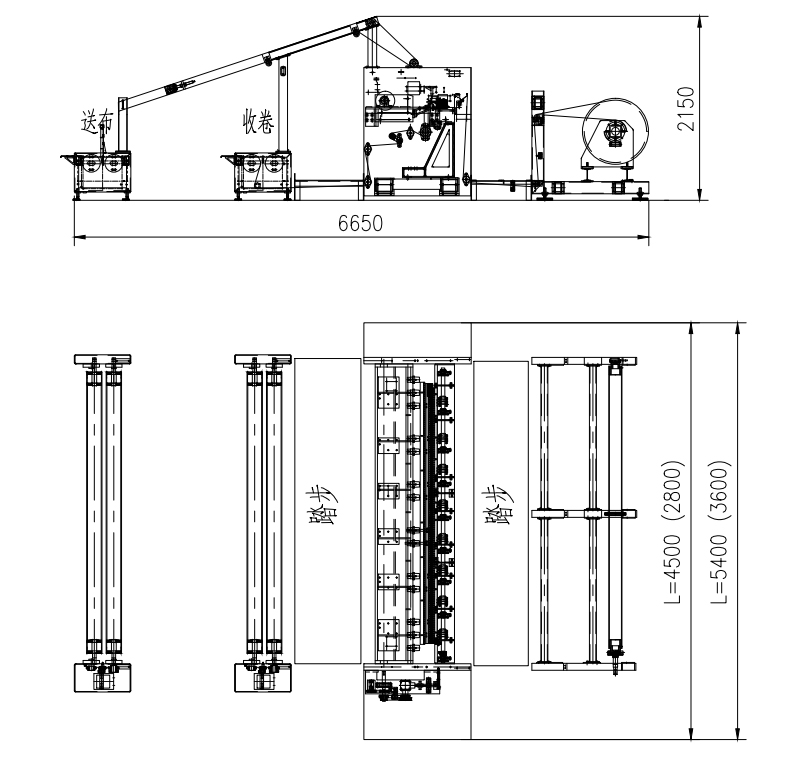

Machine size:
