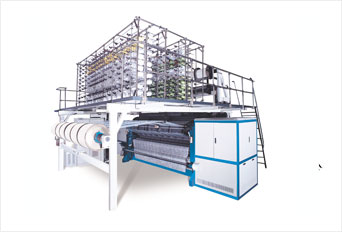

RSJ67/1/32F (134") (200") E18/E24 Lace Machine With Full plate
Applications: Outwear, Intimate apparel and lingerie

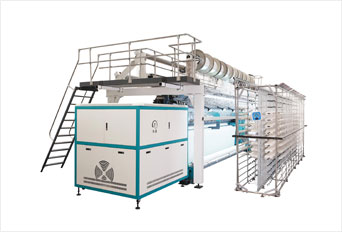

RSJ83/1/32F (134") (200") E18/E24 Lace Machine With Full plate
Applications: Outwear, Intimate apparel and lingerie
| RSJ67/1/32F (134") (200") E18/E24 Lace Machine With Fullplate | RSJ83/1/32F (134") (200") E18/E24 Lace Machine With Fullplate | |
| Guage | E18、E24 | E18、E24 |
| Working Width | 3404mm (134") 5080mm (200"） | 3404mm (134") 5080mm (200") |
| Bars Number | GB+PB+JB | GB+PB+JB |
| Machine Speed | 20-750r/min | 20-750r/min |
| GB Shogging | EL | EL |
| Let off | EBC | EBC |
| PB shogging | Creel | Creel |
| Drawing off | Electronic | Electronic |
| Batching | Electronic | Electronic |
| PB shogging amount | 180mm | 180mm |
| Pattern fingers | Unfixed string bars | Unfixed string bars |
| Beams size | GB: φ30", Spandex: φ21" | GB: φ30", Spandex: φ21" |
| Main motor power | 5.5KW, 7.5KW | 5.5KW, 7.5KW |

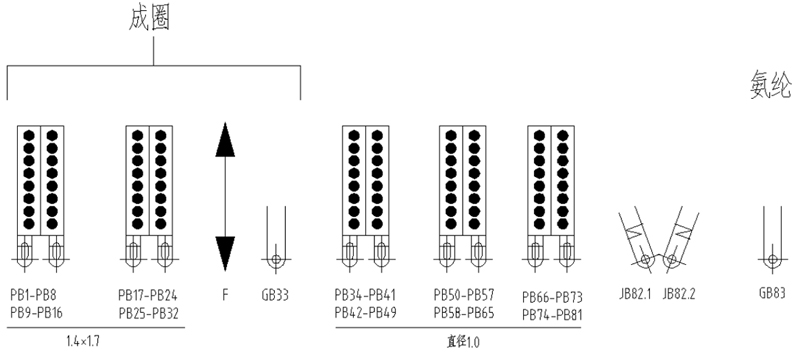

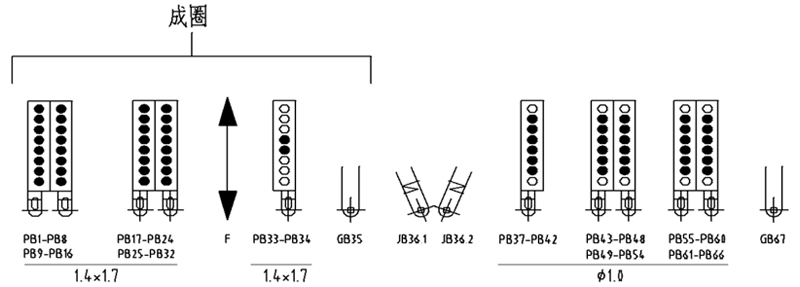

Bar arrangement:

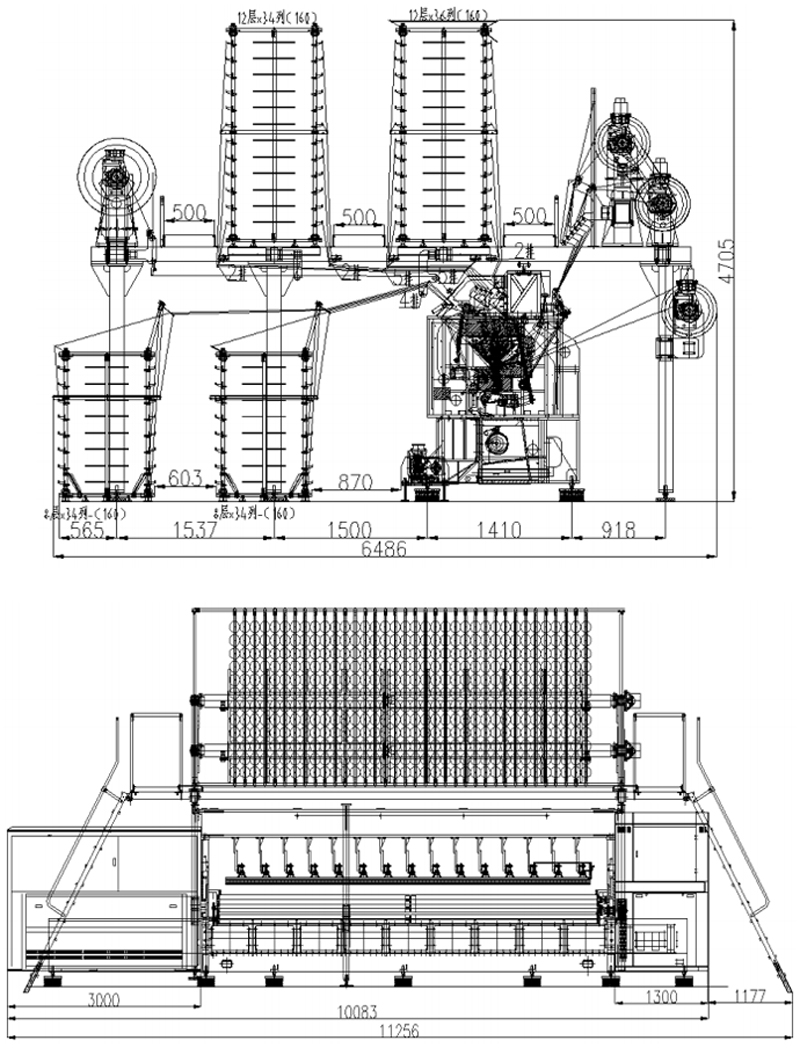

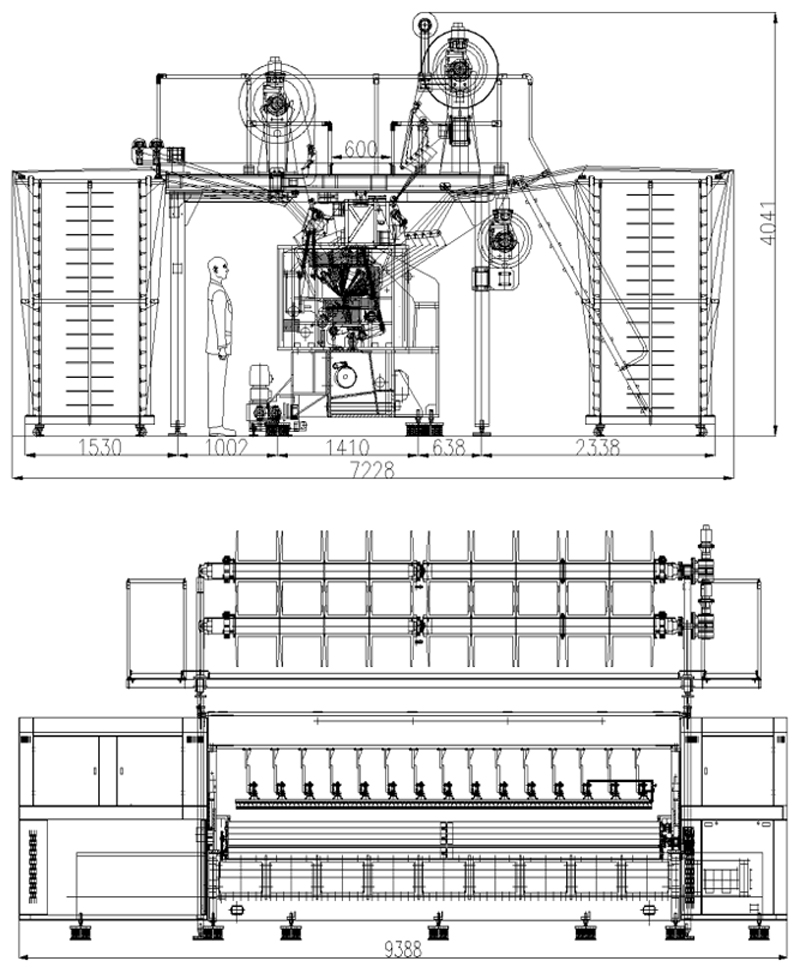

Machine size:
